    In stock

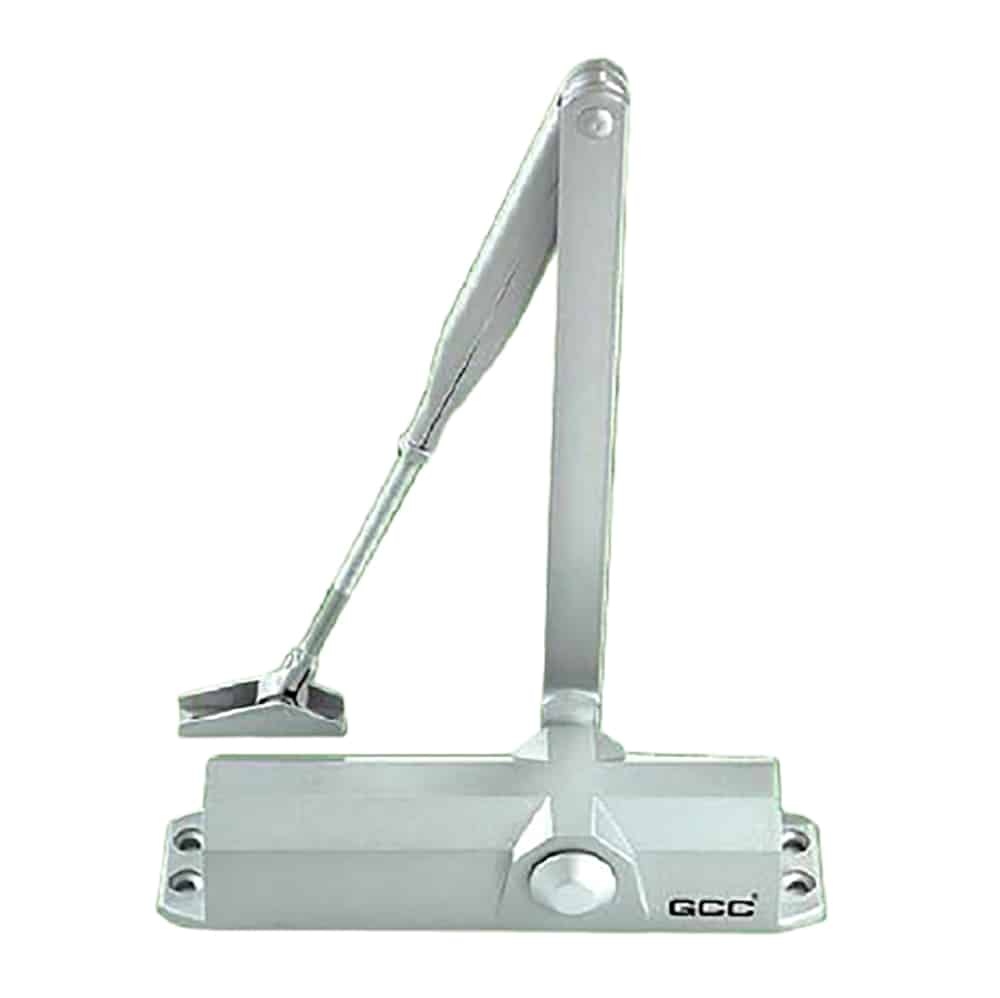

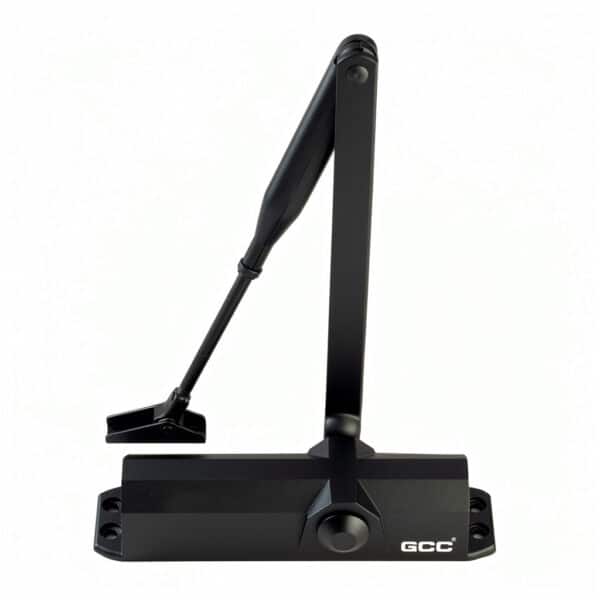

    GCC Standard Surface Mounted Overhead Door Closer (ODC-680)

    0 customer reviews

    SKU: ODC-731

    ODC-680 Brochure



    ODC-680 Series is a standard strength option for architectural and commercial applications.

    • Three different power adjustments (EN2-4) for interior or exterior doors.
    • Suitable for LH (left hand) and RH (right hand) doors.
    • Non-handed installation.
    • Adjustable Backcheck.
    • Backcheck (Optional)

    • Closing Force: EN2-4
    • Standard Door Width: 850-1100mm
    • Standard Door Weight: 40-80kg
    • Max. Opening Angle: EN2-3 = 180° & EN4 = 105°
    • Closing Speed Adjustable: 180°-15°
    • Adjustable Latching Action: 15°-0°
    • Backcheck from approx: 70°-180°

    The product finishes displayed in some of these images may be AI-generated visualizations based on genuine product samples. While we strive for high accuracy, digital representations can vary significantly due to screen settings and lighting. To ensure complete satisfaction with your choice, we strongly recommend contacting us to check if the product finish is available for viewing at one of our warehouses.

    Additional information

    Weight 2 kg
    Dimensions 220 × 45 × 80 cm
    Finish

    Black, Brown, Gold, Silver, White

    Reviews

    There are no reviews yet.

    Be the first to review “GCC Standard Surface Mounted Overhead Door Closer (ODC-680)”

    Your email address will not be published. Required fields are marked *


    In stock

    GCC Mechanical Fixing Plate (FP-01)

    0 customer reviews

    SKU: FP-01

    • Used for fixing a ODC-730 Door Closer to the top of a Toughened Glass Door

    • To suit 10mm glass

    • Glass Preparation: 2 x Ø20mm
