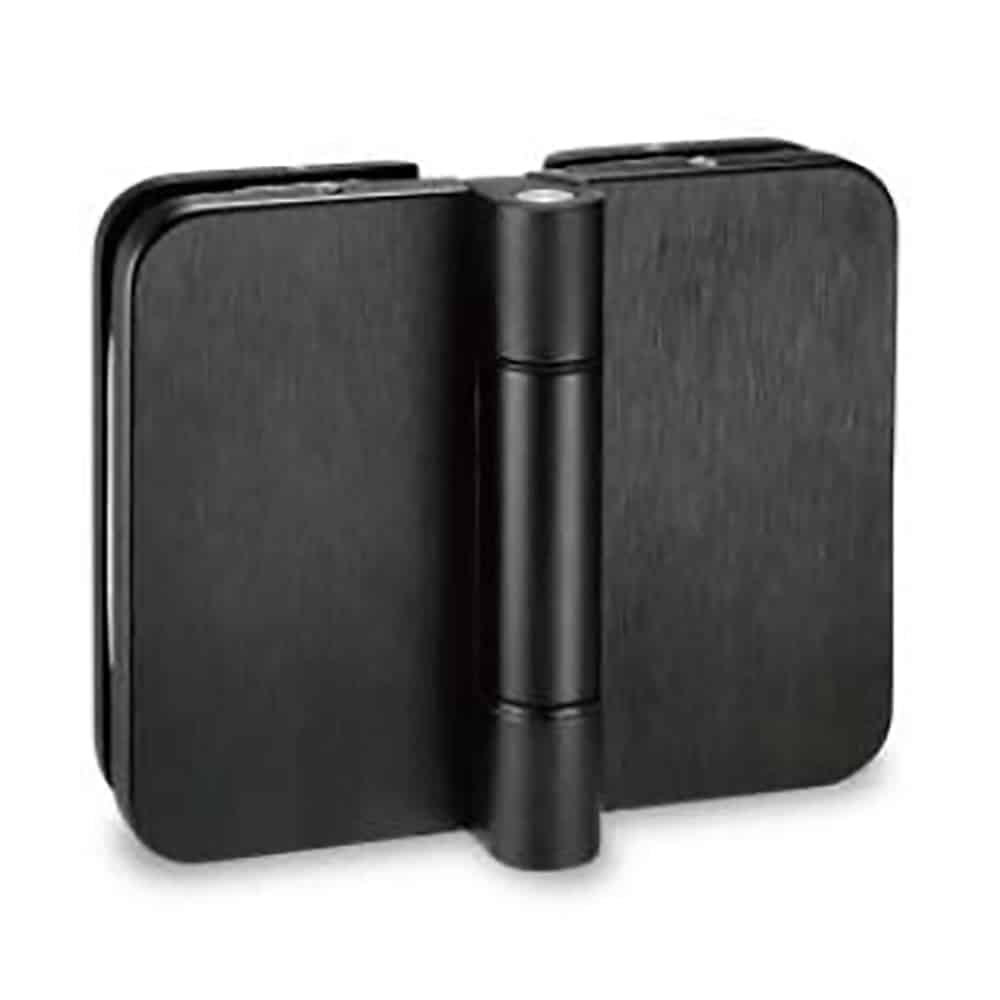

    GCC Lever Hinge - Glass to Glass (LH-86-2/4)
    GCC Lever Hinge - Glass to Glass (LH-86-2/4) - Image 2
    GCC Lever Hinge - Glass to Glass (LH-86-2/4) - Image 3
    GCC Lever Hinge - Glass to Glass (LH-86-2/4) - Image 4
    GCC Lever Hinge - Glass to Glass (LH-86-2/4) - Image 5
    GCC Lever Hinge - Glass to Glass (LH-86-2/4) - Image 6
    GCC Lever Hinge - Glass to Glass (LH-86-2/4)
    GCC Lever Hinge - Glass to Glass (LH-86-2/4)
    GCC Lever Hinge - Glass to Glass (LH-86-2/4)
    GCC Lever Hinge - Glass to Glass (LH-86-2/4)
    GCC Lever Hinge - Glass to Glass (LH-86-2/4)
    GCC Lever Hinge - Glass to Glass (LH-86-2/4)

    In stock

    GCC Lever Hinge – Glass to Glass (LH-86-2/4)

    0 customer reviews

    SKU: LH-86-2

    GCC Lever Hinge Brochure

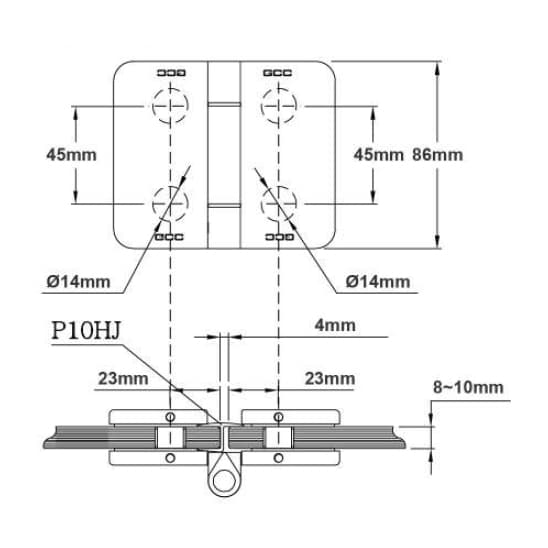

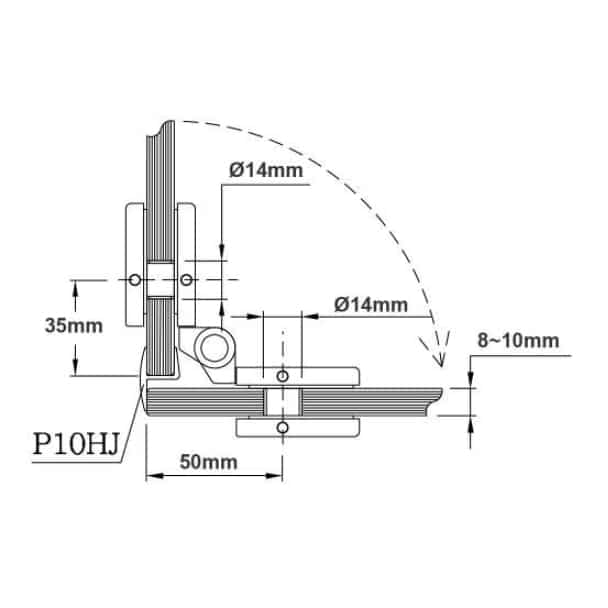

    Please not that LH-86-2 & LH-86-4 are the same hinge but have different glass preparation based on 180° & 90° glass to glass aplications.



    High-Performance Frameless Glass Entrances

    The new range of GCC high-performance fittings bridges the traditional gap between the minimalist aesthetic of frameless glass and the environmental control of framed systems. By resolving common issues like acoustic leakage and thermal transfer, this system allows frameless glass to be specified in high-demand environments such as executive boardrooms, medical suites, and luxury residences without compromising on comfort.

    Key Technical Features:

    • Continuous Sealing: The LH-86 lever hinge is engineered to work seamlessly with the DS-4114 drop seal, creating a comprehensive perimeter barrier that blocks sound, drafts, dust, and thermal bleed.

    • Precision Control: ODC Series overhead closers provide fully adjustable latching speeds, ensuring the door closes with the exact force required to engage the seals every time.

    • Non-Invasive Installation: Innovative FP Series friction plates allow for the mounting of closers and highlights without drilling holes or cut-outs, preserving the glass’s structural integrity and ensuring a cleaner finish.

    Categories: HingesTags: 10mm, 8mm, Glass, Hinge, Lever, Toughened

    You may also Like...

    • Suits 8-10mm Glass
    • Max. Weight Capacity: 60kg for two hinges & 85kg for three hinges
    • Max. Door Width: 900mm for two hinges & 1200mm for three hinges

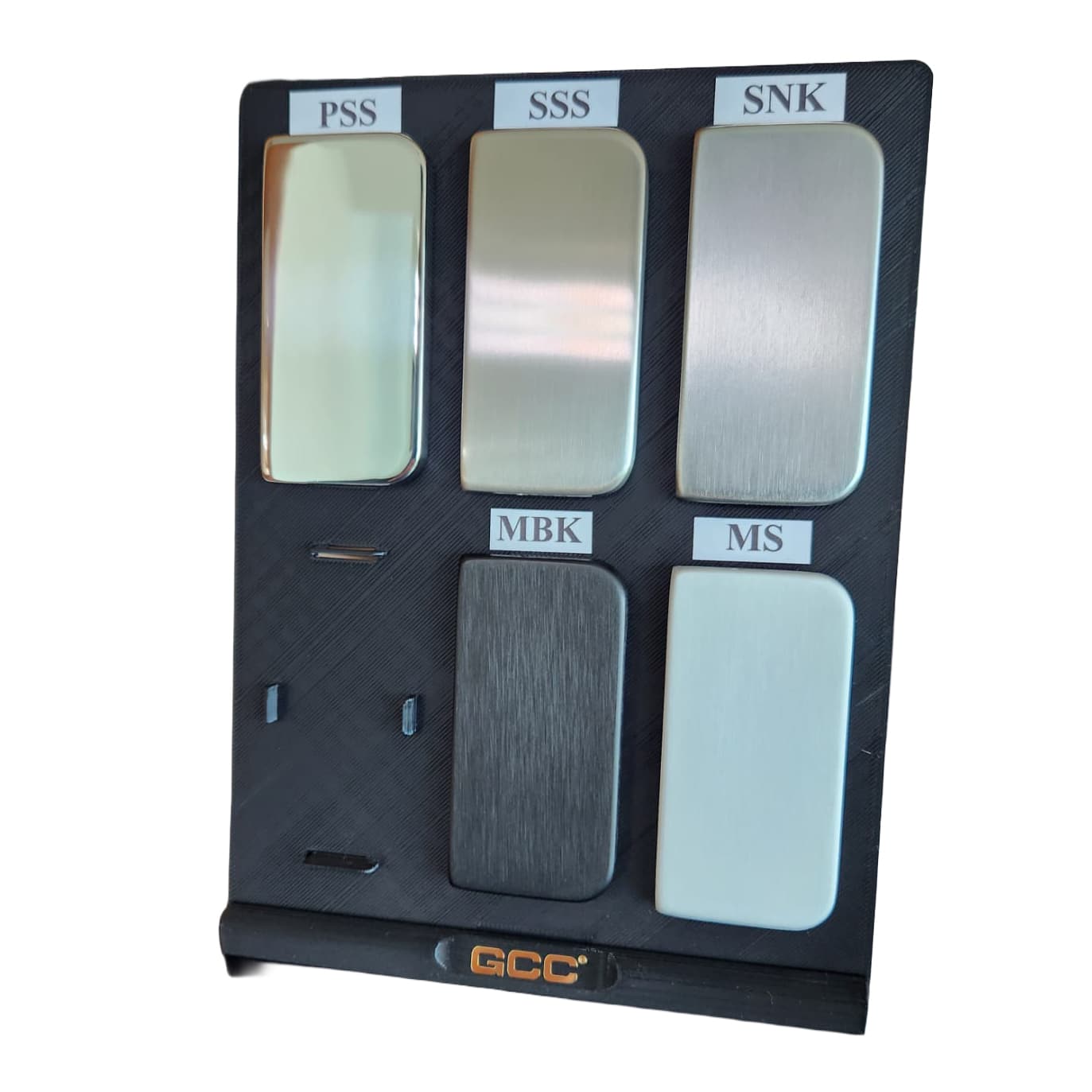

    • Finishes: Polished Stainless Steel, Satin Stainless Steel, Anodised Matt Silver, Anodised similar to hairline Stainless Steel, Anodised Matt Black & Custom Finishes

    The product finishes displayed in some of these images may be AI-generated visualizations based on genuine product samples. While we strive for high accuracy, digital representations can vary significantly due to screen settings and lighting. To ensure complete satisfaction with your choice, we strongly recommend contacting us to check if the product finish is available for viewing at one of our warehouses.

    Additional information

    Weight 1 kg
    Dimensions 130 × 50 × 90 cm
    Finish

    Matt Black Anodised, Matt Silver Anodised, Polished Stainless Steel, Satin Stainless Anodised, Satin Stainless Steel
