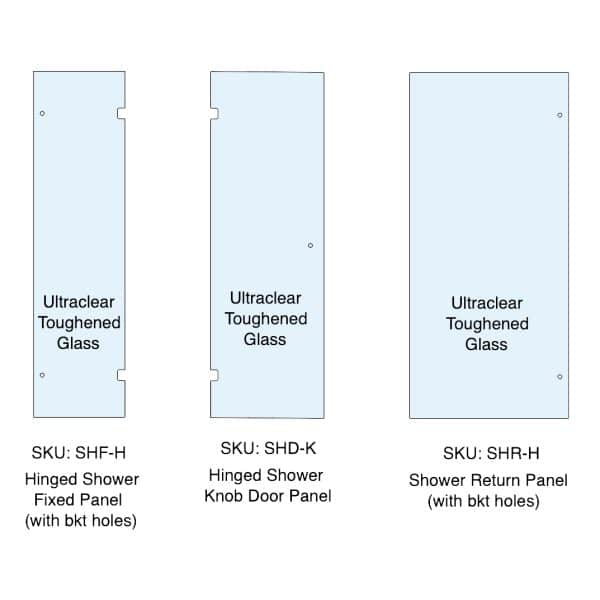

10mm Ultraclear Toughened Glass Hinged Shower Screen Panel Kit – Hinged (bracket holes), Door (knob) & Return (bracket holes)

How to choose the panel sizes required:

1. Measure the overall width from wall to wall at top, middle and bottom
2. Check the level of the walls, anything over 5mm out may require channel (CS15, CH15 or CH30) instead of brackets and the use of a panels without holes or possibly custom made panels
3. Determine the minimum width
4. Subtract the prefered door width, 10mm for return panel thickness and 9mm for clearances
5. Depending on the dimension produced for the hinged panel, you may need a custom made panel
6. Determine the minimum depth
7. Depending on the dimension produced for the return panel, you may need a custom made panel
8. There are too many options to list for hinges, brackets, knobs and waterbars to include with the glass kit (please add them seperately)
9. Suitable hinges for this panel combination include MF2
10. Suitable brackets for this panel combination include MBS90
11. Suitable knobs for this panel combination include MK25 & MKS25
12. Suitable waterbars for this panel combination include the MWB10, MWS3 & MWS3-1M
13. If you require assistance please email your drawing with dimensions and levels to customer.service@mfgs.com.au
