• Suits 6mm & 8mm toughened glass
• Max. door weight: 40kg with two hinges
• Max. door width: 900mm
• Installation on the glass requires less than one minute
• The friction fit allows flexibility in the hinge positioning height
• Designed and manufactured in Italy with patent pending
• Rotation angle: +90° – 0°
• Door zero offset adjustment: +/-1,5°
• Material: Aluminium, EPDM gasket
• Chrome plating thickness: 25 Micron
• Standard Finishes: Polished Chrome, Brushed Nickel, Matt Black
• Special finishes available

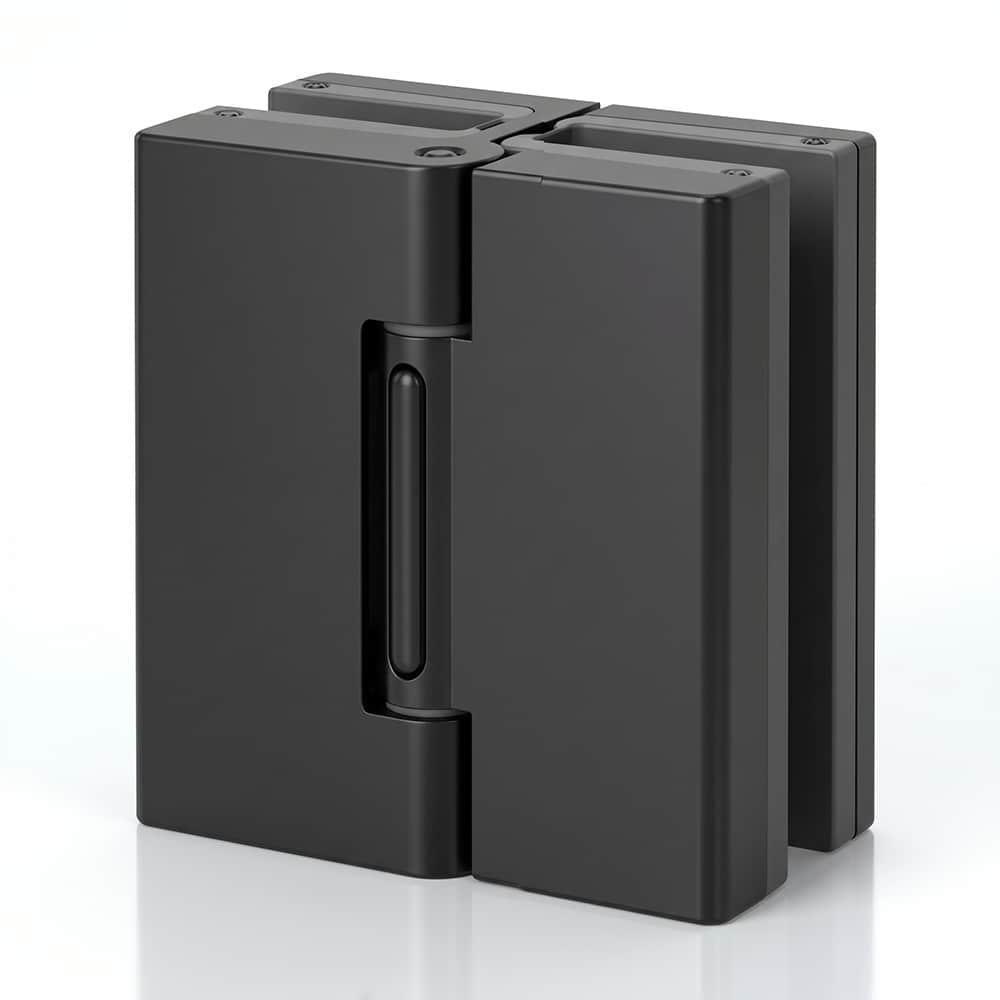

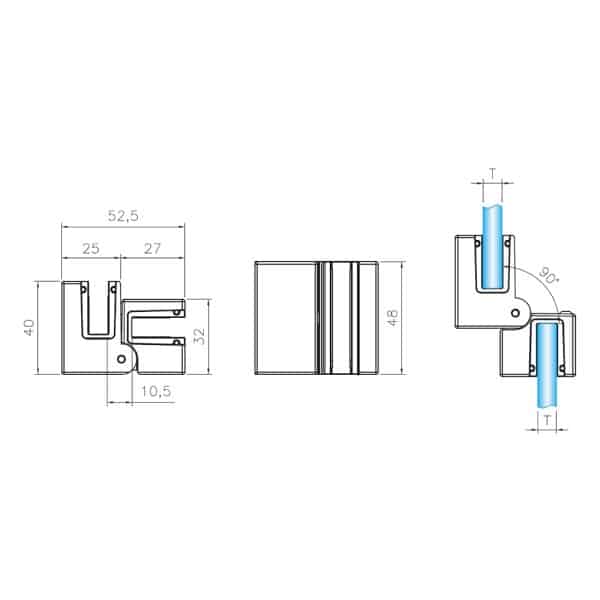

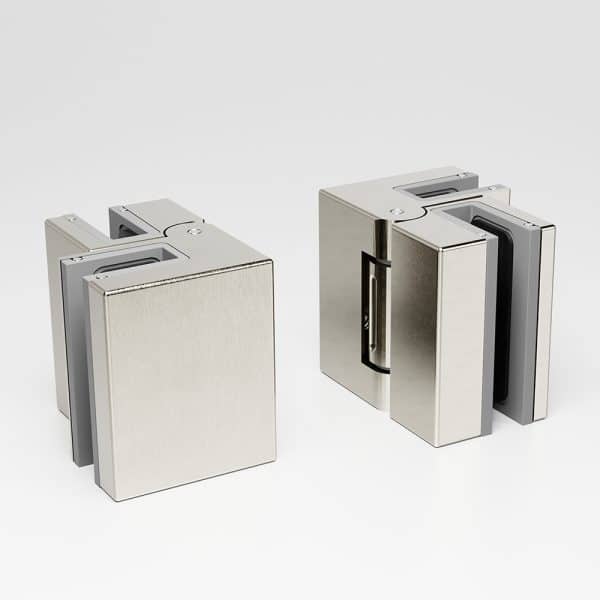

GFS Thiene Miny Lightweight 90° Glass to Glass Friction Fit Hinge
SKU: E02TH104
• No cut-outs, No screws, No glue, Easy to install and with high-loading capacity.
• Thiene uses a simple and innovative patented locking system consisting of only two components. This innovative system prevents any slipping of the glass even with signi cant weights.
You may also Like...
Additional information
| Finish | Brushed Nickel, Matt Black, Polished Chrome |
|---|---|
| Glass Thickness | 6mm, 8mm |
