• Suits 8mm, 10mm, 10.76mm, 12mm & 12.5mm glass
• Suits tempered, laminated and tempered laminated
• Max. door weight: 100kg with two hinges
• Max. door width: 1200mm
• Installation on the glass requires less than one minute
• The friction fit allows flexibility in the hinge positioning height
• Designed and manufactured in Italy with patent pending
• Rotation angle: +90° – 0°
• Door zero offset adjustment: +/-1,5°
• Cycle test duration carried out according to EN 14423: 100,000 opening & closing cycles
• Corrosion resistance test (saline mist test 5% solution according to ISO 9227:2006) without rust appearance: Grade 5 – polished chrome & brushed nickel
• Thiene is tested to withstand high temperatures, in fact it is suitable for saunas.
• Material: Aluminium & Zinc Alloy, EPDM gasket
• Chrome plating thickness: 25 Micron
• Standard Finishes: Polished Chrome, Brushed Nickel, Matt Black
• Special finishes available

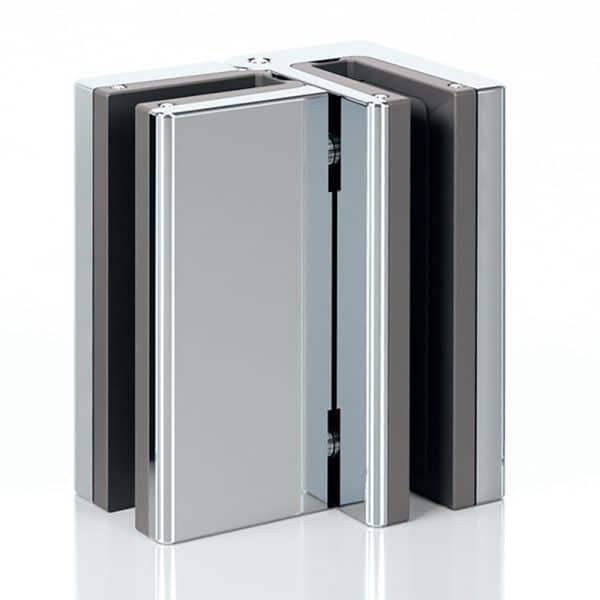

GFS Thiene Heavyweight 90° Glass to Glass Friction Fit Hinge
SKU: E02TH004
• No cut-outs, No screws, No glue, Easy to install and with high-loading capacity.
• Thiene uses a simple and innovative patented locking system consisting of only two components. This innovative system prevents any slipping of the glass even with signi cant weights.
Additional information
| Finish | Brushed Nickel, Matt Black, Polished Chrome |
|---|---|
| Glass Thickness | 10.76mm, 10mm, 12.5mm, 12mm, 8mm |
