• Non Hold Open / Hold Open 90°
• Closing & Latching Speed Adjustable
• Max. Opening Range of 130°
• Max. Door Width: En1 = 800mm, En2 = 900mm, En3 = 1000mm & En4 = 1100mm
• Max. Door Weight: 150kg
• All settings can conveniently be accessed & adjusted from the top when installed
• Standard Spindles available & Offset Spindles upon request – POA
• Material: Stainless Steel Cover Plate, Galvanised Steel Box, Cast Steel Body
• Cover Plate Finishes: Satin Stainless Steel

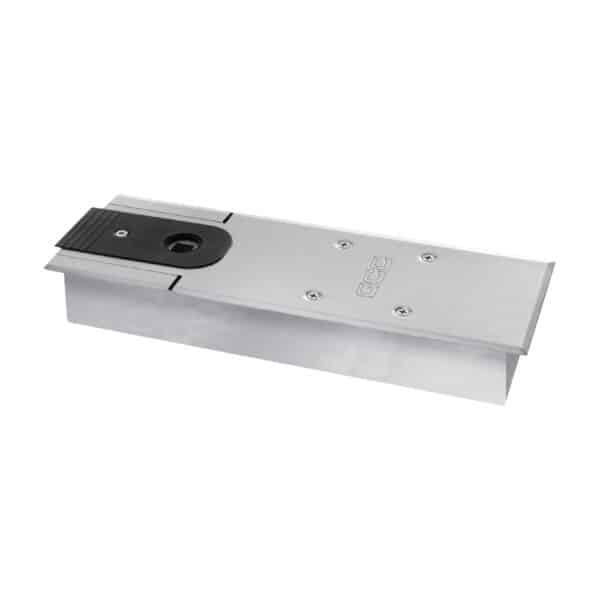

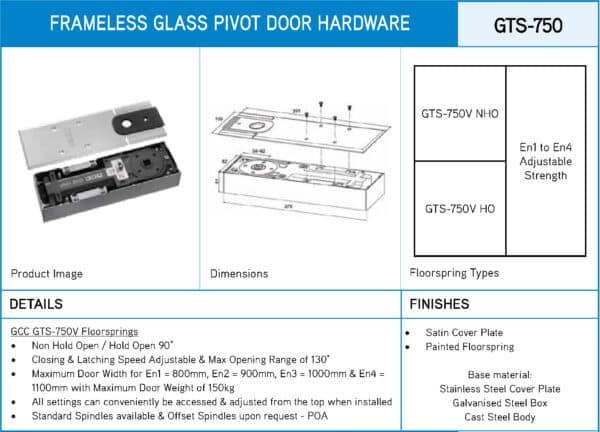

GCC Floor Spring – 150kg (GTS-750V…)
SKU: GTS-750V
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 300 × 120 × 110 mm |
| Hold Open or Non Hold Open | Hold Open, Non Hold Open |
