• Suits 10mm glass
• 90° mounting plate with 4 wall fixing holes

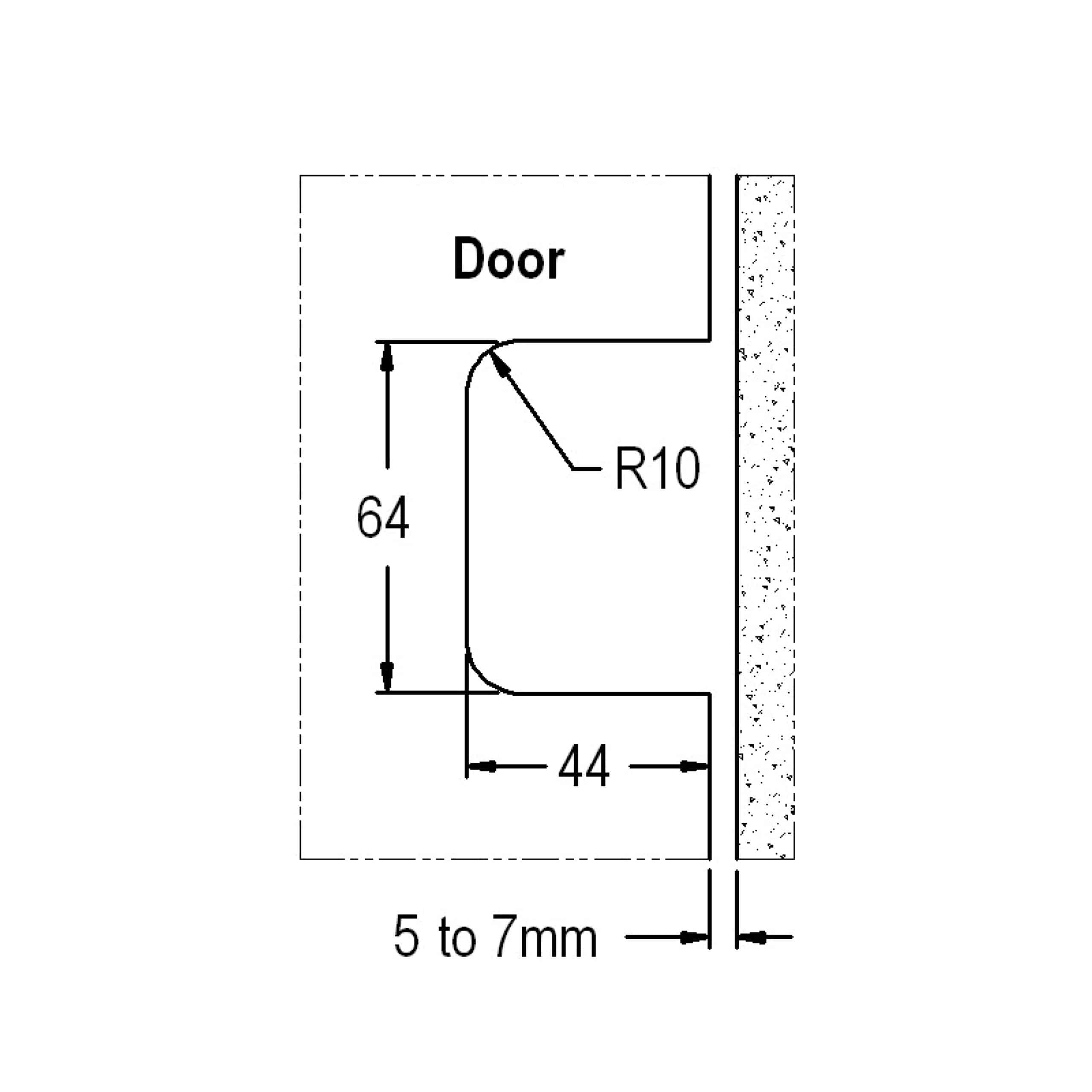

• Used when mounting a door at 45° from a corner (part of the corner will need to be removed behind the hinge for mounting purposes)
• Max. Weight Capacity: 35kg per two hinges & 52.5kg per three hinges
• Max. Door Width: 800mm
• Supplied with Hex Head machine screws & 50mm wall fix screws.
• Hinges open in & out. Self closing from approximately 30°
• Custom angles may be available
• Material: Brass
• Stocked Finishes: Brushed Nickel, Polished Chrome, Polished Gold, Matt Black, Satin Chrome & Satin Gold
• Backorder Finishes (6-8 week lead-time): PVD Brushed Brass, Champagne Gold, Gloss Gunmetal, Gloss Brushed Nickel, Gloss White, Matt Gunmetal, Matt Satin Nickel, Polished Raw Brass, Satin Raw Brass & Satin White
In stock

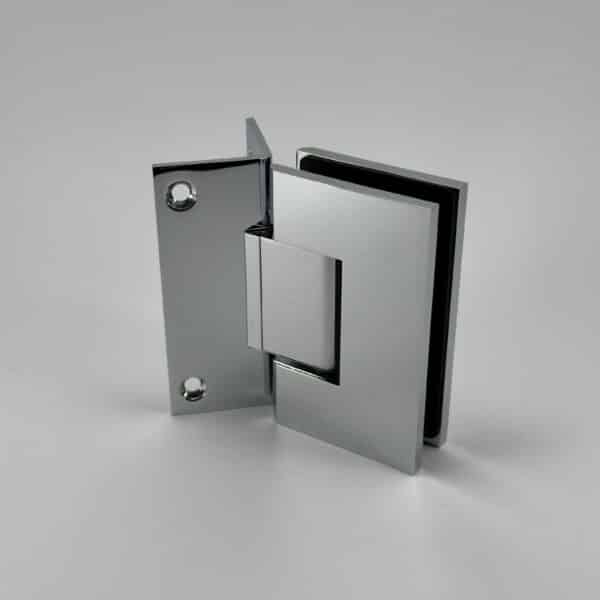

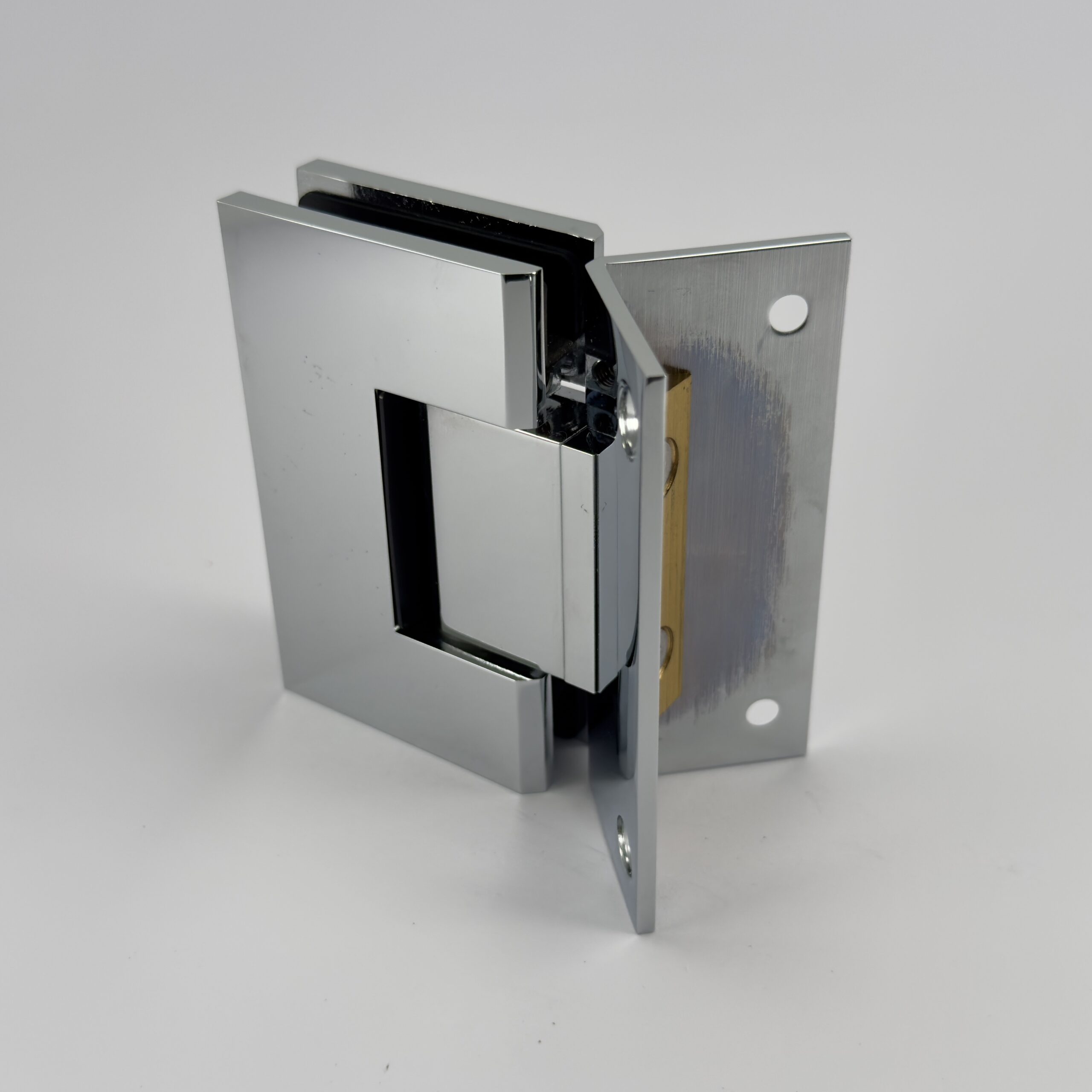

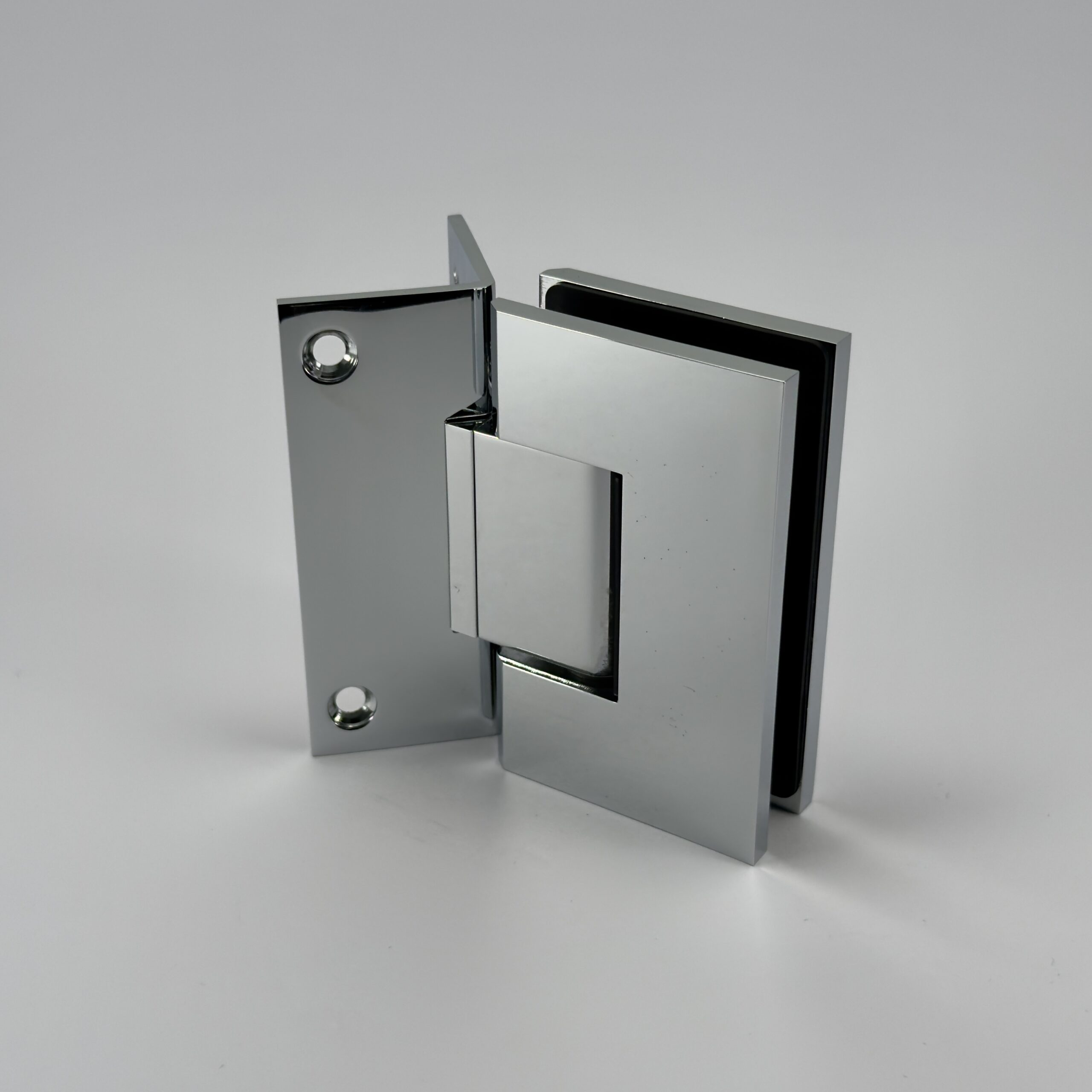

Modern 90° Glass to Wall Heavyweight Shower Hinge (MF1-90)
SKU: MF1-90
You may also Like...
-
Modern/Elite Half Square Glass Shelf Bracket for 10mm Glass (MBS10/SB10.SQ)
Read more -
Modern Hinged Shower Door Panel for Knob (SHD…-K)
Read more -
Modern Half Round Glass Shelf Bracket for 10mm Glass (MB10)
Read more -
Modern/Elite 90° Square Glass to Wall / Floor Shower Bracket (MBS90/SB50.SQ)
Read more -
Modern Hinged Shower Door Panel for Handle (SHD…-H)
Read more -
Modern 90° Round Glass to Wall / Floor Shower Bracket (MBR90)
Read more
Additional information
| Weight | 1.18 kg |
|---|---|

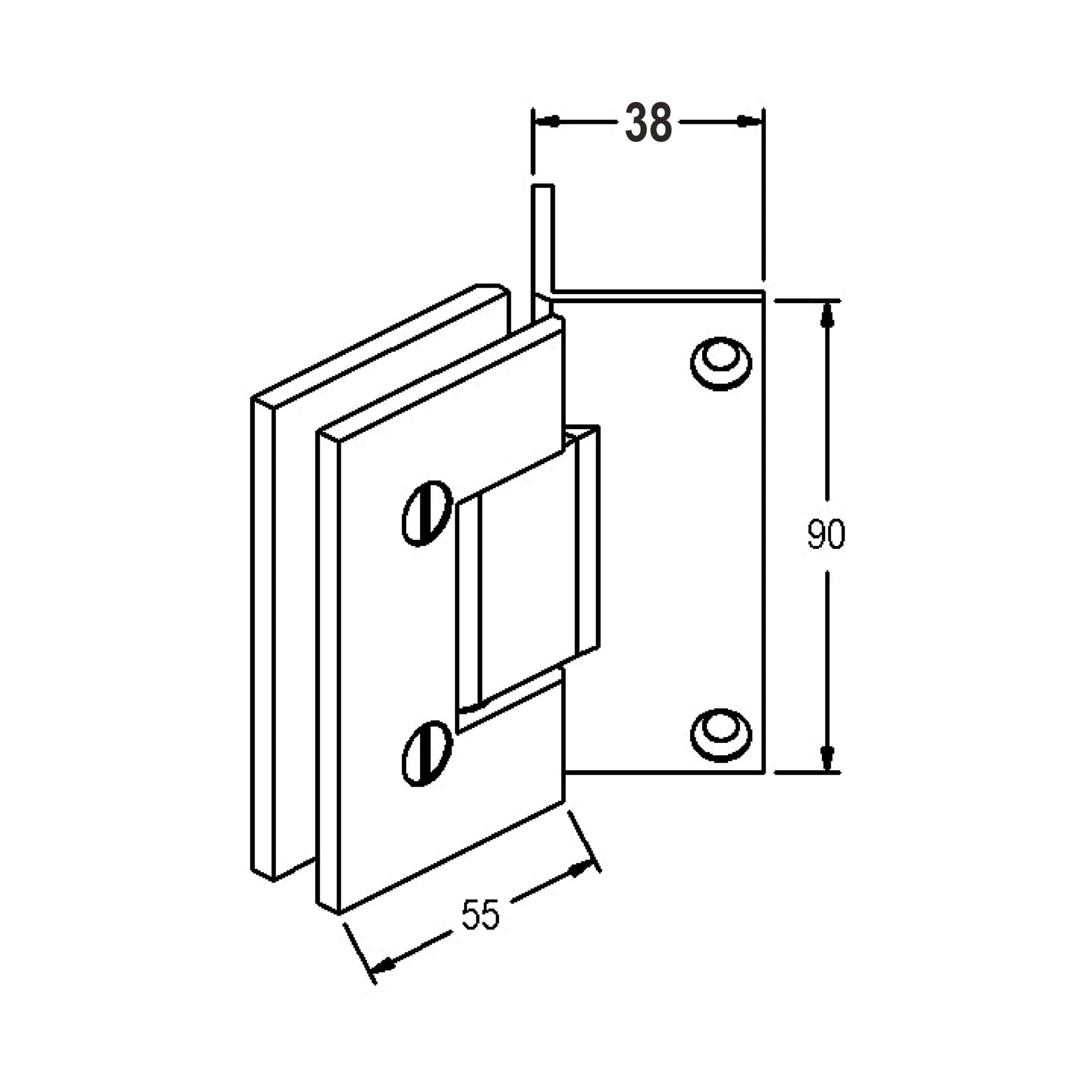

| Dimensions | 8.9 × 5.4 × 9 cm |
| Finish | Brushed Nickel, Champagne Gold, Gloss Brushed Nickel, Gloss Gunmetal, Gloss White, Matt Black, Matt Gunmetal, Matt Satin Nickel, Polished Chrome, Polished Gold, Polished Raw Brass, PVD Brushed Brass, Satin Chrome, Satin Gold, Satin Raw Brass, Satin White |
