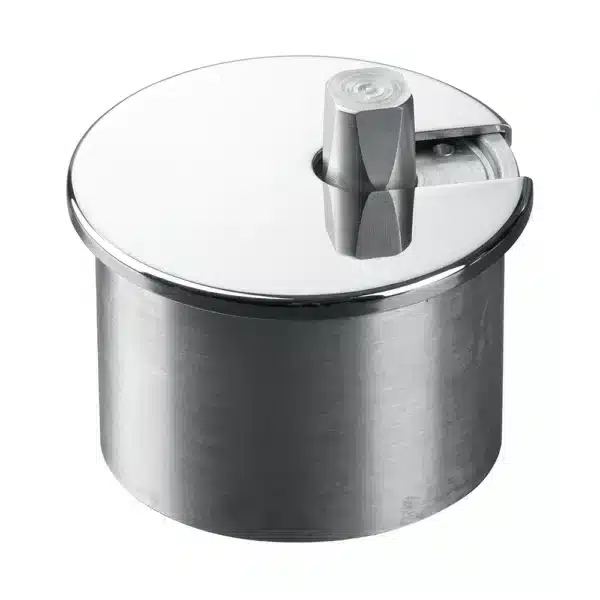

GFS Round K Hold Open Floor Spring for E08C01 Bottom Patch Fitting (E08R00)

Name: GFS Round K Hold Open Floor Spring for E08C01 Bottom Patch Fitting (E08R00)
Brand: GFS
SKU: E08R00
Availability: InStock

Rated 0 out of 5

0 customer reviews

SKU: E08R00

E08R00 Technical Product Guide Page

Categories: Pivot & Hinge Door Systems, Door Closers, Floor SpringsTags: 900mm, 90kg, Bottom, Fitting, Floor-Spring, GFS, Hold-Open, Patch, Round-K

You may also Like...

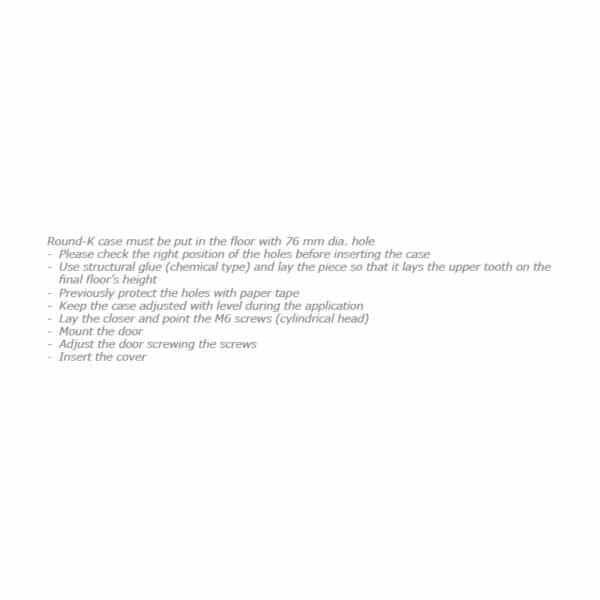

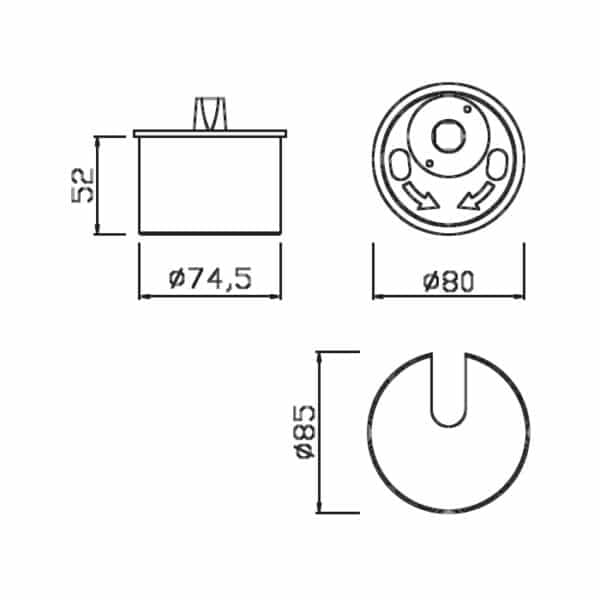

• Round-K case must be placed in the floor with a 76mm dia. hole
• Check the correct hole position before inserting the case
• Use structural glue (chemical type) and lay the case so that it lays the upper tooth on the final floors height
• Previously protect the holes with paper tape
• Keep the case level during the application
• Lay the closer and point the M6 screws (cylindrical head)
• Mount the door
• Adjust the door by turning the screws
• Insert the cover
• Suitable for internal doors
• Max. door weight: 90kg
• Max. door width: 900mm
• Material: Aluminium & Stainless Steel
• Finishes: Polished Stainless Steel, Satin Stainless Anodised
