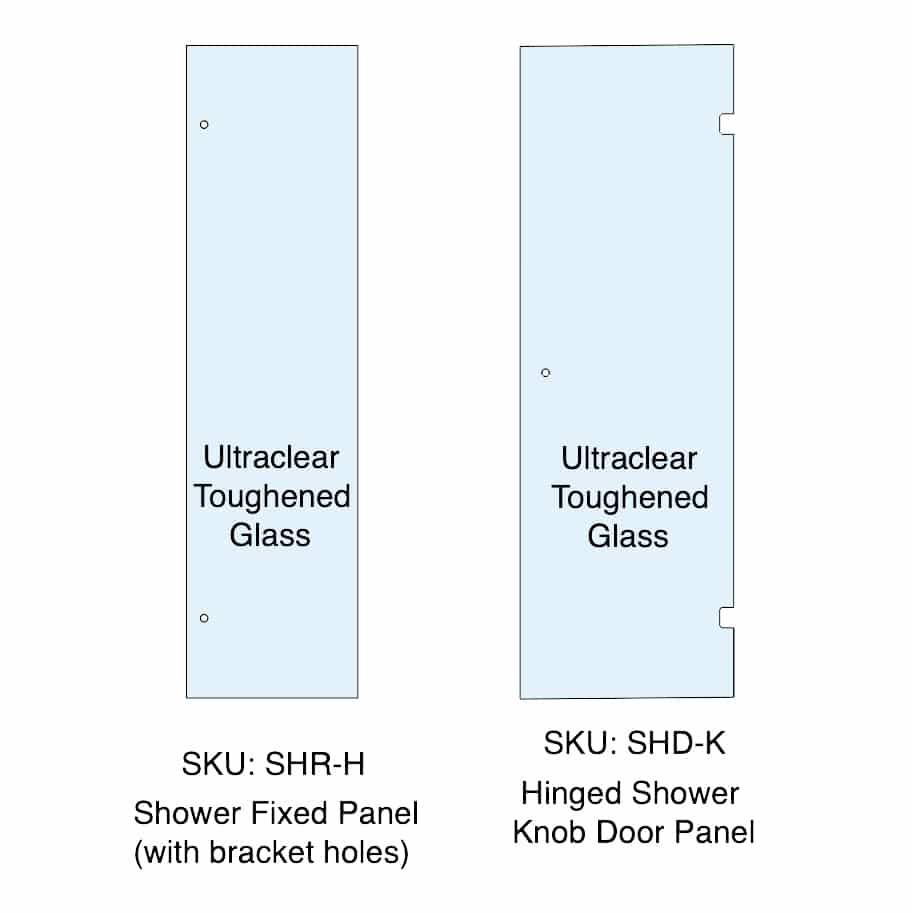

10mm Ultraclear Toughened Glass Hinged Shower Screen Panel Kit – Fixed (bracket holes) & Door (knob)

How to choose the panel sizes required:

1. Measure the overall width from wall to wall at top, middle and bottom
2. Check the level of the walls, anything over 5mm out may require channel (CS15, CH15 or CH30) instead of brackets and the use of a panel without holes or possibly a custom made door and/or side panel
3. Determine the minimum width
4. Subtract the prefered door width and 11-13mm for clearances (wall hinges can have a 5-7mm clearance from the wall)
5. Depending on the dimension produced for the fixed side panel you may need to use channel (CS15, CH15 or CH30) and a SHR panel without holes or possibly a custom made fixed panel
6. There are too many options to list for hinges, brackets, knobs and waterbars to include with the glass kit (please add them seperately)
7. Suitable hinges for this panel combination include MF1, MF1-L3, MF1-L & MF1-XL
8. Suitable brackets for this panel combination include MBS90
9. Suitable knobs for this panel combination include MK25 & MKS25
10. Suitable waterbars for this panel combination include the MWB10, MWS3 & MWS3-1M
11. If you require assistance please email your drawing with dimensions and levels to customer.service@mfgs.com.au
