• Suits 8mm to 15mm Glass (Specify when ordering)
• Max. door weight = 100kg
• Max. door width = 900mm

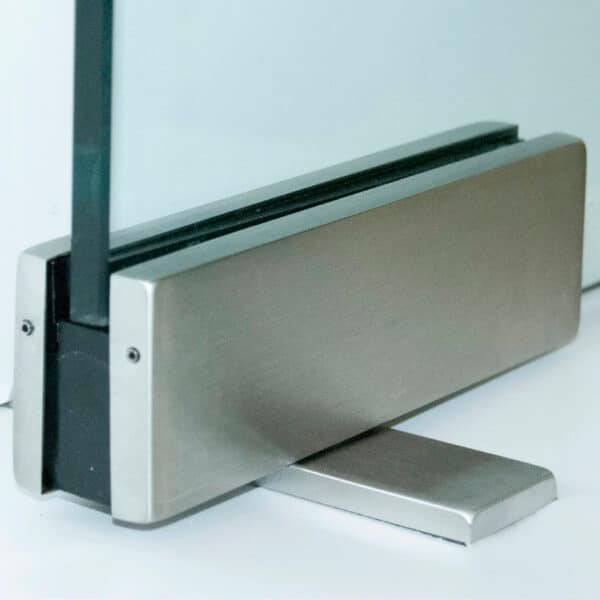

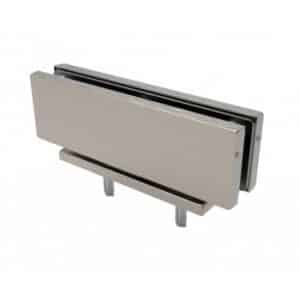

• World first hydraulic bottom patch that can turn an already installed free swinging glass door to a fully controlled one by changing the bottom pivot and the bottom patch
• It has exactly the same dimensions and cut outs of the standard top and bottom patches (165mm x 50mm)
• It can be used instead of a standard bottom patch for double acting doors. Can be used together to all other patch fittings (40000 series) in any of their finishes
• Easy to be installed, it takes less than 10 minutes like any standard free swinging glass door
• Adjustable bottom pivot and closing speed to suite any installation requirement
• Only one valve controls the closing speed
• Cover Finishes: Natural Anodised, Polished Stainless Steel, Satin Stainless Steel
